Fish Oil Refining Equipment Marine Oil Processing Line for Omega 3 Production

Fish oil is one of the richest natural sources of long chain omega 3 fatty acids, but crude fish oil is dark, odorous and contains free fatty acids, moisture and oxidation products that make it unfit for food or supplement use. A well designed refining line cleans the oil without damaging these heat sensitive fatty acids.

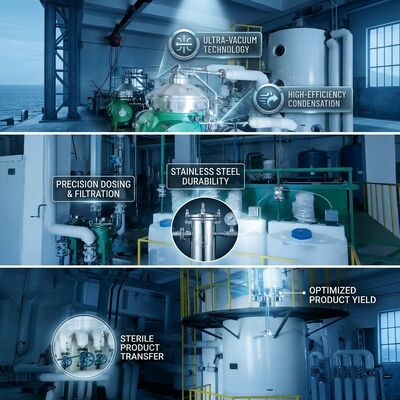

The Fish Oil Refining Equipment guides the crude oil through degumming, deacidification, bleaching, winterization and deodorization stages. Gentle vacuum processing holds temperatures low, so the EPA and DHA content is preserved while free fatty acids, pigments and off flavours are removed. A final winterization step clears the waxes that would otherwise make the oil cloudy and shorten its shelf life.

Stainless steel construction, nitrogen blanketing and closed processing protect the oil from oxygen and contamination throughout. Depending on the specification the plant can produce standard refined fish oil, winterized clear oil or a concentrated omega 3 ester, and the whole line is monitored by PLC for a stable, repeatable result.

• Gentle Vacuum Refining: Low temperature vacuum operation removes impurities while preserving the delicate omega 3 fatty acids.
• Full Process Line: Degumming, deacidification, bleaching, winterization and deodorization are combined into a single efficient line.
• High Omega 3 Retention: Careful control of temperature and residence time protects EPA and DHA, keeping the nutritional value high.
• Oxidation Protection: Nitrogen blanketing and fully enclosed processing prevent oxidation and rancidity during refining and storage.
• Hygienic Stainless Build: All contact parts are stainless steel and the line supports CIP cleaning for food and supplement grade production.
• Flexible Product Grades: The same line can produce standard refined oil, winterized clear oil or concentrated omega 3 according to the customer specification.

The Fish Oil Refining Equipment serves fish oil producers, supplement manufacturers and health food companies. The refined oil is used in softgel capsules, functional foods and aquafeed, and the line also refines marine oils for cosmetic and pharmaceutical raw material supply.

Reactors, the deodorizer, heat exchangers and the winterization unit are shipped on stainless steel frames with all surfaces protected and every connection capped. Instruments and the control cabinet travel in moisture proof cases. Process flow diagrams, utility data and commissioning support are provided, and the line carries a twelve month warranty against manufacturing defects.
