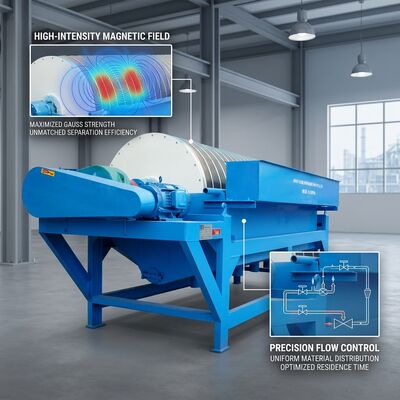

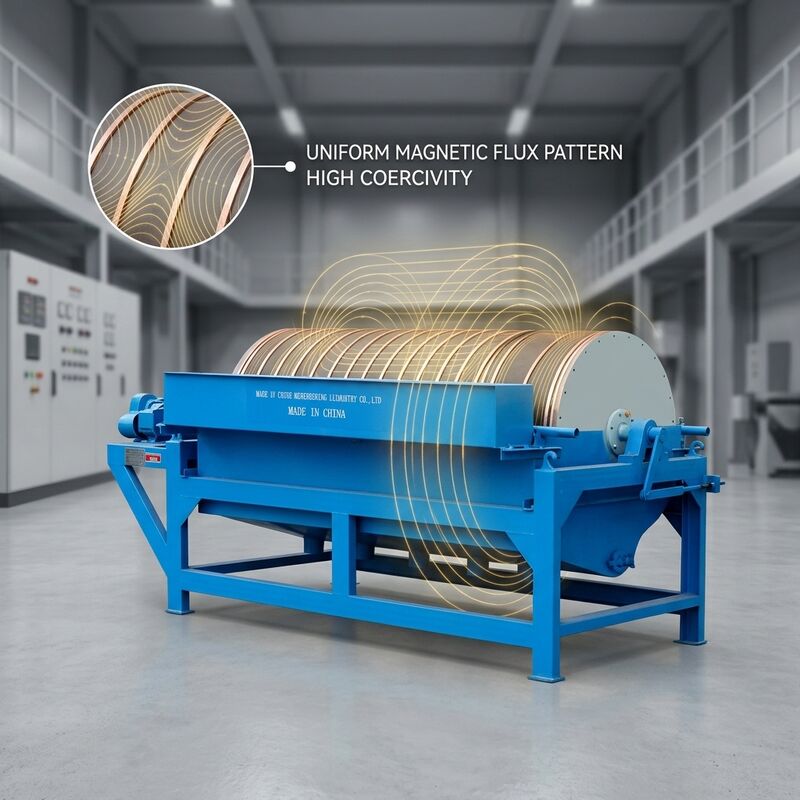

Magnetic Separator CTB1018 Iron Ore Machine for Mineral Concentration Plant

The Magnetic Separator CTB1018 uses a rotating drum fitted with permanent magnets to capture strongly magnetic particles from an ore slurry and carry them clean out of the tailings. As the slurry flows through the tank, magnetite and other ferromagnetic minerals cling to the drum surface and are lifted behind a scraper, while non-magnetic material is washed away with the flow. This continuous, self-cleaning action recovers valuable magnetic concentrate at high efficiency and removes tramp iron that might damage downstream equipment. Its permanent magnet system needs no power for the field, making the separator energy-efficient and very reliable in round-the-clock mineral processing duty.

• Strong Permanent Magnet Field: High-strength permanent magnets capture fine magnetic particles efficiently without any field-exciting power consumption.
• Continuous Self-Cleaning: The rotating drum and scraper discharge the magnetic concentrate continuously, so separation runs without manual intervention.
• Wear-Resistant Drum Cover: A durable rubber or stainless cover protects the drum and withstands the abrasion of abrasive ore slurries.
• Adjustable Working Gap: The tank and drum positions can be adjusted to tune the separation performance for different feed characteristics.
• Compact Reliable Structure: A simple, robust frame and a low-maintenance drive keep the machine dependable in continuous service.
• Energy-Efficient Operation: Because the magnetic field is permanent, the machine uses power only to rotate the drum, lowering running costs.

Magnetic separators are used to concentrate magnetite and other ferromagnetic ores in iron ore beneficiation plants, to remove iron contamination from non-metallic minerals, and to recover magnetic media in heavy-media separation. They also protect crushing and grinding equipment by extracting tramp iron from process streams.

The separator ships with the drum and magnets protected and the drive unit crated. A spare drum cover and complete fastening kit are included. Each unit is assembled and checked before dispatch. We provide a twelve-month warranty and a dependable supply of wear covers and bearings to keep your separation line performing.
