Magnetic Beneficiation Plant Iron Ore Equipment for Mineral Concentration Line

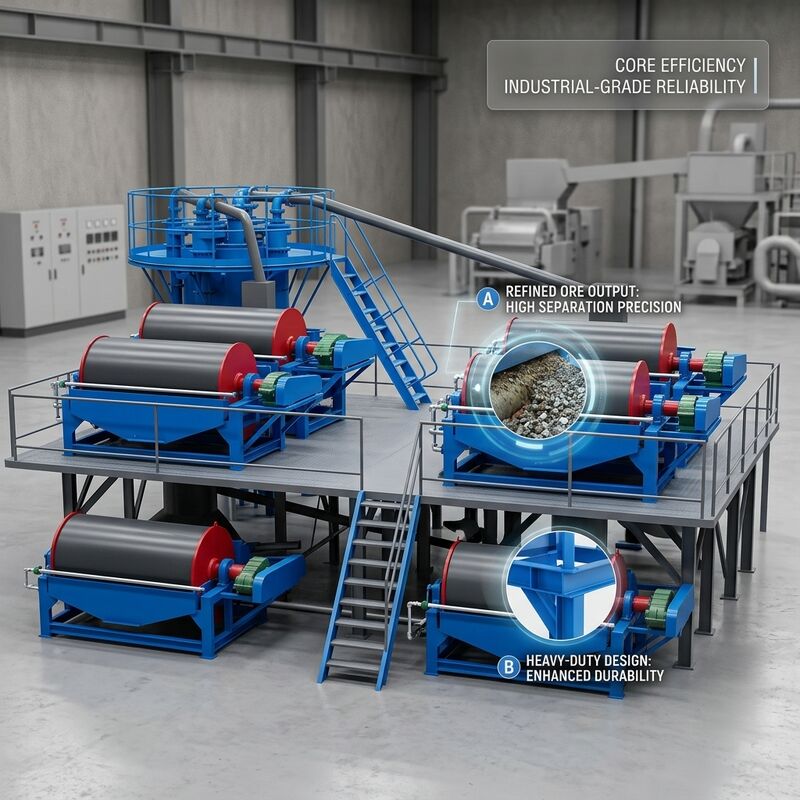

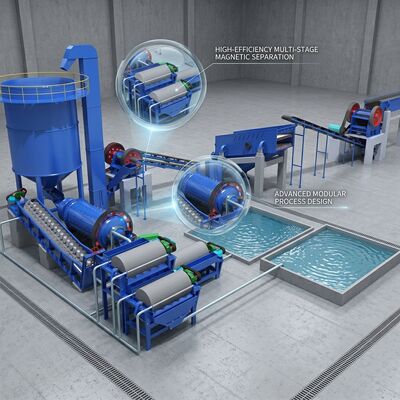

The Magnetic Beneficiation Plant separates minerals according to differences in magnetic intensity, making it the main method for upgrading iron ore. Ore is first crushed in a jaw crusher and then ground in a ball mill, and the discharged powder is classified in a spiral classifier that cleans and groups the mixture by sedimentation rate. The classified material passes to a magnetic separator, where magnetic minerals are pulled from the pulp under the combined action of magnetic and mechanical force, and is then further treated in a flotation machine to remove remaining impurities. Finally the concentrate is thickened and dried into a clean, dry product. The plant raises ore grade, reduces detrimental impurities, and also serves to recover heavy-media magnetite and to remove iron from non-metallic minerals.

• Complete Beneficiation Flow: Crushing, grinding, classification, magnetic separation, flotation, thickening and drying work together as one plant.
• Higher Ore Grade: Magnetic separation concentrates the iron and other magnetic minerals, raising grade and reducing harmful impurities.
• Handles Ferrous and Non-Ferrous Ores: The plant suits strongly and weakly magnetic ores, and can combine magnetic, gravity and flotation methods.
• Iron Removal Protection: It removes iron contamination from non-metallic minerals, protecting crushers and downstream processing equipment.
• Media and Slag Recovery: The process recovers magnetite and ferrosilicon heavy media, and can recover steel from metallurgical slag.
• Reliable, Proven Equipment: Robust mills, classifiers and separators keep the plant running steadily with predictable performance.

Magnetic beneficiation plants are used to upgrade iron ore and to separate ferrous and rare non-ferrous minerals, and to recover magnetite and ferrosilicon heavy media from gravity separation. They also remove iron impurities from non-metallic minerals such as kyanite, quartz, feldspar and nepheline, and recover steel from metallurgical slag, making them valuable across mining, mineral processing and metallurgical operations.

The plant is supplied as a coordinated package of machines, with mills, separators and thickeners shipped in protected sections and the motors, magnetic assemblies and control panels crated separately. A full set of layout drawings, process design and operating manuals is provided, and our engineers support installation, commissioning and operator training. The equipment is backed by a twelve-month warranty and a reliable supply of wear and spare parts.
